Best Efficient Environmental Protection For Room Heating And Sanitary Hot Water Home Gas Boiler
Technical data
| Model Number | L1PB18 | LIPB20 | L1PB24 |
| Gas Type | NG/LPG |
| Rated Gas Pressure(Pa) | 2000/2800 |
| Rated Gas Input(kw) | 18 | 20 | 24 |
| Rated Gas Output(kw) | 15.9 | 17.6 | 21.1 |
| Efficiency Under Rated Heat Input(%) | Above88% |
| Power Supply | 20-50HZ |
| Electric Power(W) | 110 | 110 | 110 |
| Temp.Range Of Heating Water(℃) | Radiator:30-80 Floor Heating:30-60 |
| Heating Area(㎡) | 70-140 | 80-160 | 100-200 |
| Lift Of pump(m) | 5 | 5 | 5 |
| Application Water Pressure(Mpa) | 0.1-0.3 |
| Expansion Tank Capacity(L) | 6 | 6 | 6 |
| Preset Pressure Of Expansion Vessel(Mpa) | 0.1 |
| Water Circulation Type | Airtight Forced Circulation |
| △T=25℃ Hot Water Supply(kg/min) | 9 | 10 | 12 |
| △T=30℃ Hot Water Supply(kg/min) | 7.5 | 8.3 | 10 |
| Temp.Range Of DHW Supply(℃) | 30-60 |
| Applicative Water Pressure(mpa) | 0.03-0.8 |
| The Minimum Starting Flow (L/min) | 2 |
| The Minimum Closed Flow(L/min) | 1.6 |
| Connections(mm) | For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2 |
| Air Input/Exhaust Duct(mm) | φ60/φ100 |
| Sparated Input/Exhaust Duct(optional) | φ80/φ100 |
| The length Of Flue Dust(m) | 1 |
| Noise On Working(DB) | ＜42 |
| Exhaust Type | Forced Exhaust |
| Ignition Type | Integrated Automatic Ignition |
| Temperature Control | Gas Proportional Adjustment |
| Product Dimensions(mm) | 740*400*305 |
| Packing Dimensions(mm) | 865*470*385 |
- With simple operation muti-function human-machine conversation system.
- 24H timing switch enable setting on/off with random needs.
- Main heat exchanger with high efficiency and energy-saving enable heating efficiency reach Europe Standard.
- With Aluminum fan and good quality ball bearing ensure low noise while working.
- Multiple automatic protecting function ensure safety and reliability.
- With modular structure design,advances assemble process, ensure excellent quality.
- Fashionable LED display with indicate light, fur able touch switch operation.(Fashionable LED display with
durable touch and knob switch operation.)
- Unique remote control system realizing climate compensation function,ensure energy saving.
- Integrated design of control system, 120 degree turns over freely, convenient for maintenance.
- With efficient, energy saving and high lift water pump ensure boiler low noise while working.

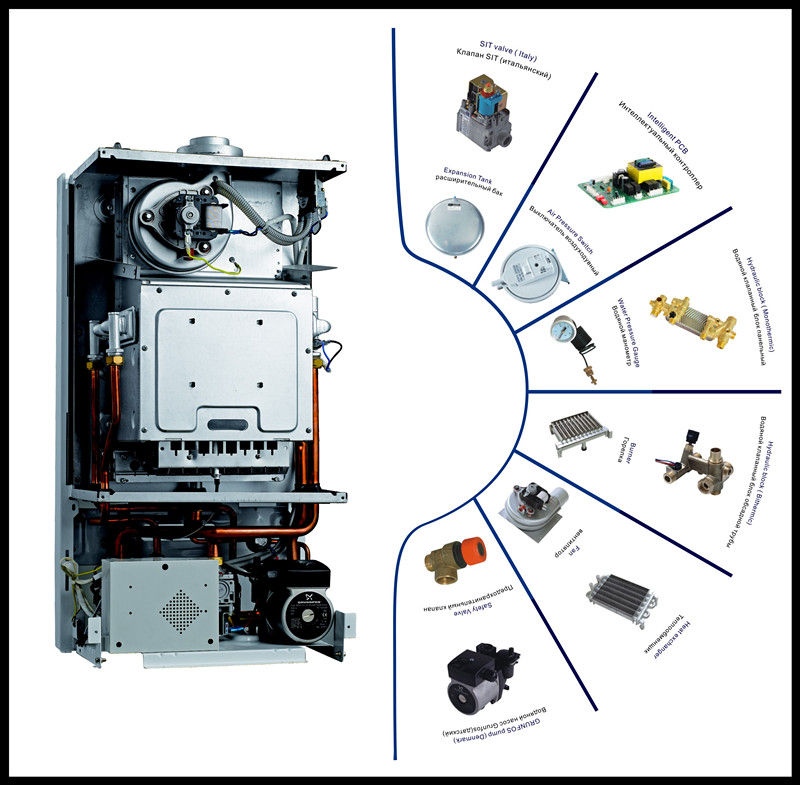

- The main parts are come from famous brand supplier which ensure best quality.
- High efficient sealed chamber system ensure sufficient burning and energy saving.
- Advanced pressure sensors technology process monitoring and water pressure displaying, ensure boiler safety.
- High quality copper waterway valves and pipe components ensure how water supplier reliable and comfortable.
- Unique remote control system realizing climate compensation function,ensure energy saving.
- Main heat exchanger with high efficiency and energy-saving enable heating efficiency reach Europe Standard.
- Advanced pressure sensors technology process monitoring and water pressure displaying,ensure boiler safety.
- With Aluminum fan and good quality ball bearing ensure low noise while working.
- Multiple automatic protecting function ensure safety and reliability.
- Integrate design of control system ,120 degree turns over freely, convenient for maintenance.
- Delicate LED display with indicate light, durable operation with knob.(Delicate LED display with durable touch
switch operation, easy open operation cover)
- With efficient, energy saving and high lift water pump ensure boiler low noise while working.
- High efficient sealed chamber ensure sufficient burning and energy saving.
- 24H timing switch enable setting on/off with random needs.
- With simple operation muti-function human-machine conversation system.
- With modular structure design, advances assemble process,ensure excellent quality.
- The main parts are come from famous brand supplier which ensure best quality.
- High quality copper waterway valves and pipe components ensure how water supplier reliable and comfortable.
- The system is controlled by intelligent micro computer. With automatic checking and judging, all working condition is clear.
- With selcetable device for warning when gas leakage, to protect your family safety.
- With special function of intelligent memory for electricity cut off, the system would recover automatically and no need for reset.
- Time and temperature would be set within one week beforehand ,enjoy the heating and shower freely.

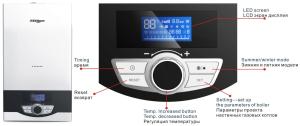

- With huge LCD display, intelligent controlled individually and enjoy the simplicity.
- With creative slip control board, the combination of art and practicality.
- With system monitoring all the time and three level for anti-frozen in winter to protect your family.
- With special pressure sensor to monitor the pump and change of heating system.
- The main components are from Europe with best quality and be more trustful.
- Superial high heat efficiency to reach European standard of three star, energy saving and be more comfortable.
- With special function of temperature saving, the temperature would be judged automatically based on outdoor temperature,
Energy saving and environment friendly.
