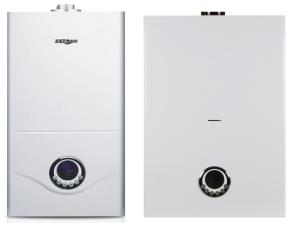

Low Pressure Home Gas Boiler Modern Appearance With Multiple Safe Protection

Name: Low Pressure Home Gas Boiler Modern Appearance With Multiple Safe Protection
Brand: Dongyuan
Price: 1 USD

China Low Pressure Home Gas Boiler Modern Appearance With Multiple Safe Protection wholesale

Brand Name : Dongyuan

Model Number : L1PB40-HC

Certification : ISO14001,ISO9001,OHSAS18001

Place of Origin : China,Shunde

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, Western Union, T/T

Supply Ability : 10000pcs per month

Delivery Time : 30days after receiving the deposit

Packaging Details : Each product in plastic bag which comes with the product instructions and foam packaging, then carton packaging outside with another thicker plastic bag.

Output power capacity : 16-28kw

Structure : Water Tube

Pressure : Low Pressure

Function : Hot Water Boiler

Gas Type : NG or LPG

Contact Now

Energy Saving Environmental Protection For Room Heating And Sanitary Hot Water Home Gas Boiler

Technical data

Model Number	L1PB40
Gas Type	NG/LPG
Rated Gas Pressure(Pa)	2000/2800
Rated Gas Input(kw)	40
Rated Gas Output(kw)	35.2
Efficiency Under Rated Heat Input(%)	Above88%
Power Supply	20-50HZ
Electric Power(W)	200
Temp.Range Of Heating Water(℃)	Radiator:30-80 Floor Heating:30-60
Heating Area(㎡)	350-450
Lift Of pump(m)	7
Application Water Pressure(Mpa)	0.1-0.3
Expansion Tank Capacity(L)	10
Preset Pressure Of Expansion Vessel(Mpa)	0.1
Water Circulation Type	Airtight Forced Circulation
△T=25℃ Hot Water Supply(kg/min)	20
△T=30℃ Hot Water Supply(kg/min)	16.7
Temp.Range Of DHW Supply(℃)	30-60
Applicative Water Pressure(mpa)	0.03-0.8
The Minimum Starting Flow (L/min)	2
The Minimum Closed Flow(L/min)	1.6
Connections(mm)	For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2
Air Input/Exhaust Duct(mm)	φ60/φ100
Sparated Input/Exhaust Duct(optional)	φ80/φ100
The length Of Flue Dust(m)	1
Noise On Working(DB)	＜42
Exhaust Type	Forced Exhaust
Ignition Type	Integrated Automatic Ignition
Temperature Control	Gas Proportional Adjustment

- Modern appearance with toughing operation.
- The control board with IML technology and the color will be never changed.
- With digital LED display and all working condition is clear.
- With one button comfortable mode for both, be more convenient and quick.
- With international technology of disjuncrt burning, the bath would be more freely and energy saving.
- With optimized design for bath function as double probe controlling system, the water temperature would be
increased more quickly.
- With 20 kinds of safe protection to protect your whole family.
- With selectable device of indoor thermostat,the indoor temperature would be set freely and 20% energy saving.

- Delicate LED display with indicate light, durable operation with knob.(Delicate LED display with durable touch
switch operation, easy open operation cover)
-With modular structure design, advances assemble process,ensure excellent quality.
-Integrate design of control system ,120 degree turns over freely, convenient for maintenance.
-With simple operation muti-function human-machine conversation system.
-Multiple automatic protecting function ensure safety and reliability.
-Unique remote control system realizing climate compensation function,ensure energy saving.
-24H timing switch enable setting on/off with random needs.
-Advanced pressure sensors technology process monitoring and water pressure displaying,ensure boiler safety.
-High efficient sealed chamber ensure sufficient burning and energy saving.
-Main heat exchanger with high efficiency and energy-saving enable heating efficiency reach Europe Standard.
-With efficient, energy saving and high lift water pump ensure boiler low noise while working.
-High quality copper waterway valves and pipe components ensure how water supplier reliable and comfortable.
-With Aluminum fan and good quality ball bearing ensure low noise while working.
- The main parts are come from famous brand supplier which ensure best quality.

-With modern simple design and individual knob control.
-With function of heating and domestic hot water to be used freely.
-With digital LED display and all working condition is clear.
-With special mode of floor heating as 60℃ limited temperature protection,and be more comfortable.
-With magnetic water filter device, and bad water also can be used.
-With special energy saving and comfortable mode, more cost would be saved.
-With 20 kinds of safe protection to protect your whole family.
-With selectable device of indoor thermostat, the indoor temperature would be set freely and 20% energy saving.
