Fashionable Home Gas Boiler 24kw Heating Output For Sanitary Hot Water

  • 1
  • 2

Brand Name : Dongyuan

Model Number : L1PB24-HA1

Certification : ISO14001,ISO9001,OHSAS18001

Place of Origin : China,Shunde

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000pcs per month

Delivery Time : 30days after receiving the deposit

Packaging Details : Each product in plastic bag which comes with the product instructions and foam packaging, then carton packaging outside with another thicker plastic bag.

Gas Type : NG

Function : Hot Water Boiler

Origin : China

Installation : Wall Hung

Structure : Water Tube

Usage : Home

Contact Now

High Thermal Efficiency Fashionable Style For Room Heating And Sanitary Hot Water Home Gas Boiler

Technical data

Model Number L1PB20 L1PB24 L1PB32
Gas Type NG/LPG
Rated Gas Pressure(Pa) 2000/2800
Rated Gas Input(kw) 20 24 32
Rated Gas Output(kw) 17.6 21.1 28.2
Efficiency Under Rated Heat Input(%) Above88%
Power Supply 20-50HZ
Electric Power(W) 110 110 145
Temp.Range Of Heating Water(℃) Radiator:30-80 Floor Heating:30-60
Heating Area(㎡) 80-160 100-200 200-300
Lift Of pump(m) 5 5 7
Application Water Pressure(Mpa) 0.1-0.3
Expansion Tank Capacity(L) 6 6 8
Preset Pressure Of Expansion Vessel(Mpa) 0.1
Water Circulation Type Airtight Forced Circulation
△T=25℃ Hot Water Supply(kg/min) 10 12 16
△T=30℃ Hot Water Supply(kg/min) 8.3 10 13.3
Temp.Range Of DHW Supply(℃) 30-60
Applicative Water Pressure(mpa) 0.03-0.8
The Minimum Starting Flow (L/min) 2
The Minimum Closed Flow(L/min) 1.6
Connections(mm) For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2
Air Input/Exhaust Duct(mm) φ60/φ100
Sparated Input/Exhaust Duct(optional) φ80/φ100
The length Of Flue Dust(m) 1
Noise On Working(DB) <42
Exhaust Type Forced Exhaust
Ignition Type Integrated Automatic Ignition
Temperature Control Gas Proportional Adjustment
Product Dimensions(mm) 740*400*305 855*470*390
Packing Dimensions(mm) 865*470*385 870*495*390

- Low noise design, using cast aluminum fan, intelligent control gas proportional valve, with special combustion

and water system.

- The original modular design, assembly and disassembly is simple, fault memory function, convenient for the

rapid diagnosis of after sales personnel.

-Till 24kw heating output, till 14.2L/min hot water(DHW)with T=25℃

- Air draught model. Open chamber, especially design for house type with collective flue.

- New design, gas saving, high efficiency, environmental protected. Adopt advanced technology, high quality

components, high efficiency combustion.

- Proportional controlling of gas flow, and heating with frequency conversion.

- With function of heating and domestic hot water to be used freely.

- With selectable device of indoor thermostat, the indoor temperature would be set freely and 20% energy saving.

- With special mode of floor heating as 60℃ limited temperature protection, and be more comfortable.

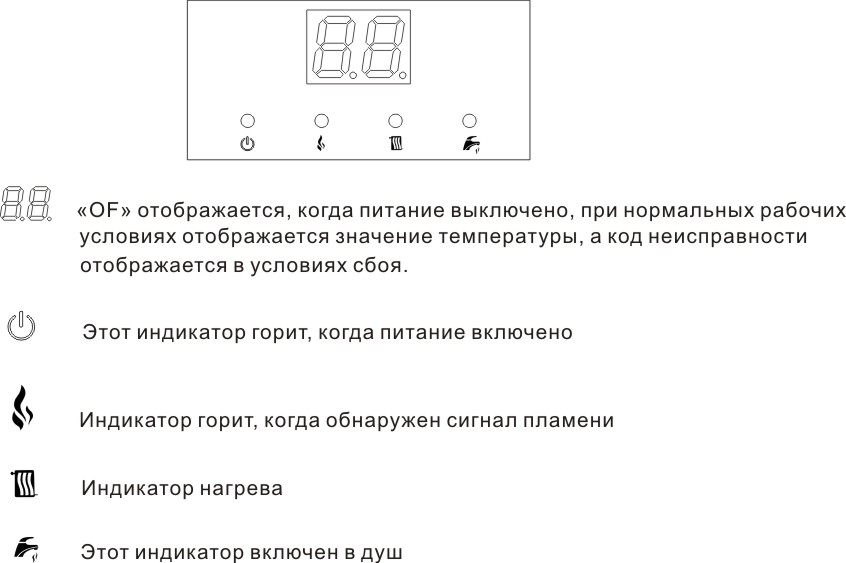

- Easy operation. With 2 knobs for mode choosing and function option,another 5 indicating lights for indicating

working condition of boiler.

- Can be connected with room thermostat or remote controller which providing more function options.

- Two modifications: Bi-thermal pipe-in-pipe copper heat exchanger or with separate plate DHW heat exchanger.

- Indication of temperatures, working modes, power level and error codes on the color multifunctional LCD display.

- Multiple security devices ensure high safety grade including anti-freezing protection, overheat protection,

by-pass protection, and so on.

- Inteligent constant temperature control will provide easeful warmth for your rooms and comfortable shower water

anytime.

- With efficient, energy saving and high lift water pump ensure boiler low water supplier reliable and comfortable.

- High efficient sealed chamber system ensure sufficient burning and energy saving.

- With efficient, energy saving and high lift water pump ensure boiler low noise while working.

- Multiple automatic protecting function ensure safety and reliability.

- Unique remote control system realizing climate compensation function,ensure energy saving.

- Stand-button design, operation is very simple.

- Gas flow proportional control, variable frequency and energy- saving heating.

- Fan burner with full gas- air premix provides gas combustion with close to ideal conditions-so the condensation

process begin earlier and by higher return line temperature(about 57℃)

Fashionable Home Gas Boiler 24kw Heating Output For Sanitary Hot Water

Fashionable Home Gas Boiler 24kw Heating Output For Sanitary Hot Water
